CARA UPLIFT

Uncover the Heart of Our Design

Hi-Tech Alluminiums, a trailblazing company founded in 2006, has revolutionised the aluminium fenestration market. Their dedication to innovation, precise engineering, and sustainable business practises has allowed them to become industry experts, establishing new benchmarks for the growth of architectural products and services. Following 17 years of providing sophisticated aluminium window solutions, Hi-Tech Alluminiums have designed an opulent Lift & Slide window system in association with Sobinco, a prominent European company foraying into extraordinary hardware solutions. The productof this collaboration is the striking “Uplift System” lift and slide window system, in which Sobinco’s top-of-the-line hardware “Levanto” and Hi-Tech Alluminiums system have played a significant role.

TYPES

Bellentesque in tempus sem consectetur venenatis urna morbi vitaela volutpat metus integer finibus risus mi sed gravida nisi lobortis at proin lacinia ex nec enim bibendum maheswer locakals sasulral

Single Door

Glaebam ipsam nunc at hic reponat nam dicta lius te est iriure in aut stante inceptos.

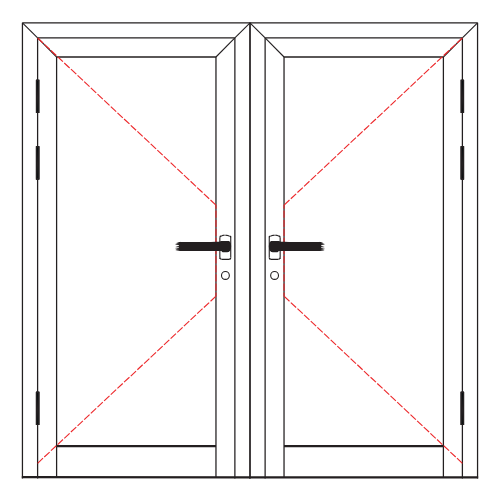

Double Door

Glaebam ipsam nunc at hic reponat nam dicta lius te est iriure in aut stante inceptos.

Single Door + Fix Glass

Glaebam ipsam nunc at hic reponat nam dicta lius te est iriure in aut stante inceptos.

ADVANTAGES

CARA UPLIFT is a modular lift & slide system with high corrosion resistance suitable for very large glass surfaces and heavy sashes. This system is designed for high wieghted sashes, high durability with expansive glass surfaces resulting in beautiful infinite vistas. Lift & slide doors work with a lift & slide system so that the sliding door sashes transition extremely smoothly from a lifting to sliding position in the frame and vice versa. The mechanism is simple: lifting, sliding and lowering of the sliding door. Flush look, Minimal look, Slim Interlock, No visible keepers, No added projection, Flush framing on all four sides.

Best hardware Integration

Sound Insulation

water Resistance

Effortless Operation

Design Aesthetics

Efficient Fabrication & Installation

TECHNICAL SPECIFICATIONS

CARA UPLIFT LIFT & SLIDE SYSTEM CAN BE OPTIMISED FOR CONVENTIONAL
SLIDING WINDOW SYSTEM INTEGRATED WITH SOBINCO BT LOCKING SYSTEM

  • CENTRAL NODE –
    Slim Interlock – 25MM Only
  • 2 TRACK WIDTH  155MM
  • FRAME SIDELINE WITH SHUTTER – 118MM
  • MAX. SINGLE SASH WIDTH – 1800MM
  • MAX. SINGLE SASH HEIGHT – 3600MM
  • GLASS THICKNESS – 18MM TO 42MM
  • VENT WEIGHT – UPTO 440 KG
  • LOCKING SYSTEM & HARDWARE INTEGRATION –
    Premium solution with 2 hooks,
    expandable with 1 or 2 extra stainless steel hooks.
  • KEY CYLINDER LOCKING –
    Also Possible for more security.
