Schueco Systems

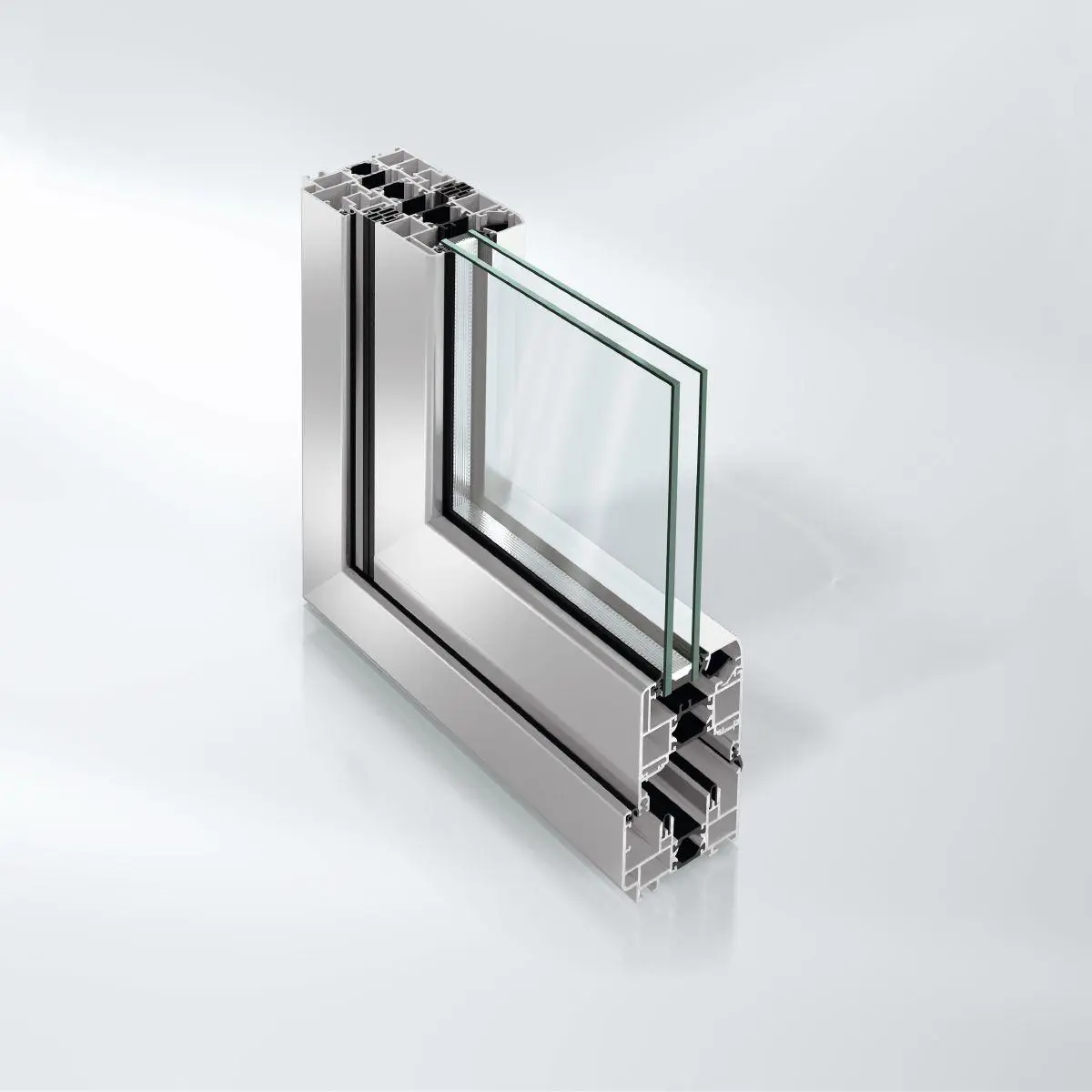

Windows

Engineered for elegance and efficiency, our aluminium windows offer sleek design and superior insulation. Built to last, they combine security, style, and smooth functionality for every space.

AWS 50.NI

  • Min. face width: 84 mm
  • Max. glass/panel thickness: 42 mm
  • Max. vent width: 1700 mm
  • Max. vent height: 2500 mm
  • Max. sound reduction index Rw: 43 dB(A)
  • Air permeability: Class 4
  • Watertightness: Class 9A
  • Burglar resistance: Up to RC 1
  • Wind load resistance: Class C5 / B5
  • Marking: Yes – Proper alignment with UL code

    • AW 40.NI

  • Min. face width 74 mm
  • Max. glass/panel thickness 26 mm
  • Max. vent width 1500 mm
  • Max. vent height 2400 mm
  • Air permeability Class 4
  • Watertightness Class 9A
  • CE marking No

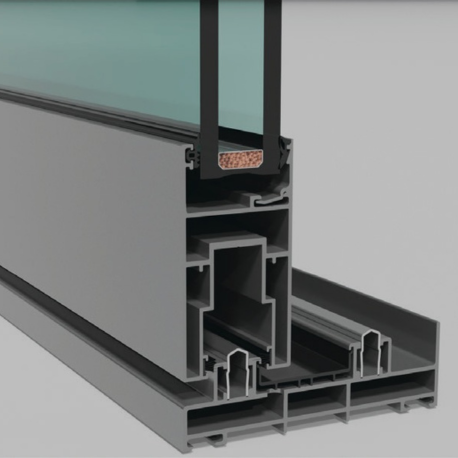

    • Sliding system

    Effortlessly smooth and space-saving, our sliding systems offer modern design with seamless functionality. Ideal for expansive views and easy access, they blend style with performance.

    As 39 sc.ni slim line

  • Max. vent width 2500 mm
  • Max. vent height 3500 mm
  • Max. vent weight 200 kg
  • Min. face width 3 7 mm
  • Max. glass/panel thickness 28 mm
  • Max. sound reduction index Rwp36 dB(A)

    • As pd 70.ni panaroma sliders

  • Max. vent width 3000 mm
  • Max. vent height 4500 mm
  • Max. vent weight 500 kg
  • Min. face width 19 mm
  • Max. glass/panel thickness 40 mm

    • Ass 70 fd slide and fold

  • Max. vent width 1500 mm
  • Max. vent height 3000 mm
  • Max. vent weight 150 kg
  • Min. face width 120 mm
  • Max. glass/panel thickness 45 mm
  • Uf value of frame (≥) 2.4 W/(m²·K)
  • Uw value of window (≥) 2.4 W/(m²·K)
  • Burglar resistance Up to RC 2
  • Max. sound reduction index Rwp 44 dB(A)

    • Ase 60 lift and slide

  • Max. vent width 3500 mm
  • Max. vent height 3500 mm
  • Max. vent weight 500 kg
  • Min. face width 40 mm
  • Max. glass/panel thickness 40 mm
  • Uf value of frame (≥) 1.8 W/(m²·K)
  • Uw value of window (≥) 1.1 W/(m²·K)
  • Burglar resistance Up to RC 2
  • Max. sound reduction index Rwp 41 dB(A)

    • Icd 50 lift and slide

  • Max. vent width 3000 mm
  • Max. vent height 4500 mm
  • Max. vent weight 500 kg
  • Max. glass/panel thickness 36 mm

    • Ass 39 pd .ni panaroma

  • Max. vent width 3000 mm
  • Max. vent height 3500 mm
  • Max. vent weight 350 kg
  • Min. face width 37 mm
  • Max. glass/panel thickness 32 mm

    • Door and fittings

    Crafted for durability and design, our doors and fittings ensure seamless operation with refined aesthetics. From entryways to interiors, they deliver strength, style, and long-lasting performance.

    Ads 50.ni

  • Max. height 2500 mm
  • Max. width 1100 mm
  • Max. glass/panel thickness 32 mm
  • Max. vent weight 200 kg
  • Area of application Internal use, External use, Commercial projects
  • Air permeability Class 2
  • Watertightness E 1500
  • Wind load resistance Class C3
  • Burglar resistance Up to RC 2

    • Ads 65

  • Uf value of frame (≥) 2.2 W/(m²·K)
  • Max. height 2500 mmMax. width1250 mm
  • Max. glass/panel thickness 45 mm
  • Max. vent weight 150 kg
  • Area of application External use, Residential projects, Commercial projects
  • Air permeability Class 2
  • Watertightness Class 5A
  • Wind load resistance Class C3
  • Burglar resistance Up to RC3
  • Impact resistance Class 1

    • Ads 70.hi

  • Uf value of frame (≥) 1.7 W/(m²·K)
  • Max. height 2500 mm
  • Max. width 1250 mm
  • Max. glass/panel thickness 52 mm
  • Max. vent weight 150 kg
  • Area of application Residential projects, Commercial projects
  • Air permeability Class 2
  • Watertightness Class 5A
  • Wind load resistance Class C3
  • Burglar resistance Up to RC3
  • Impact resistance Class 1

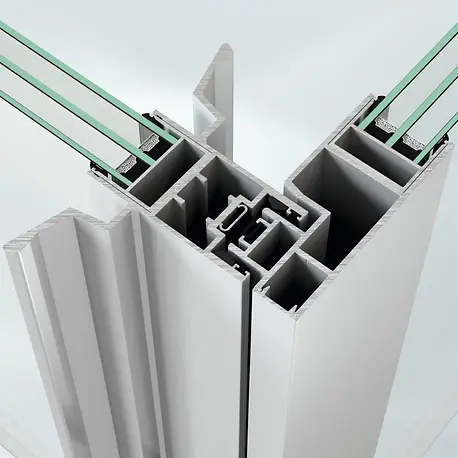

    • Facades

    Striking and resilient, our façade systems redefine modern architecture with clean lines and premium finishes. Designed for performance and visual impact, they offer energy efficiency and lasting elegance.

    Fws 50.ni

  • Uf value of frame (≥) 3.3 W/(m²·K)
  • Max. glass/panel thickness 38 mm
  • Max. weight 1080 kg
  • Air permeability 600 Pa
  • Max. sound reduction index Rwp37 dB(A)
  • Burglar resistance Up to RC 2

    • Troptec sc 50 sg.ni

    The Schuco TropTec SC 50 SG.NI is a structural glazing aluminium façade system designed for tropical climates. It features a sleek all-glass exterior, slim 50 mm interior profiles, and a durable mullion/transom design that ensures energy efficiency, flexibility, and weather resistance in high wind and heavy rain conditions.

    WHY BUY OUTDOOR BLINDS FROM MONOLITH?

    Monolithoutdoor blinds combine proven systems, innovative techniques and an eye for detail. Our sun protection fabric can be distinguished by:

    • Proven wind resistance up to 130 km/h
    • Slim design for an aesthetic finish
    • Versatility of colours, fabrics and systems
    • A solution for every window
